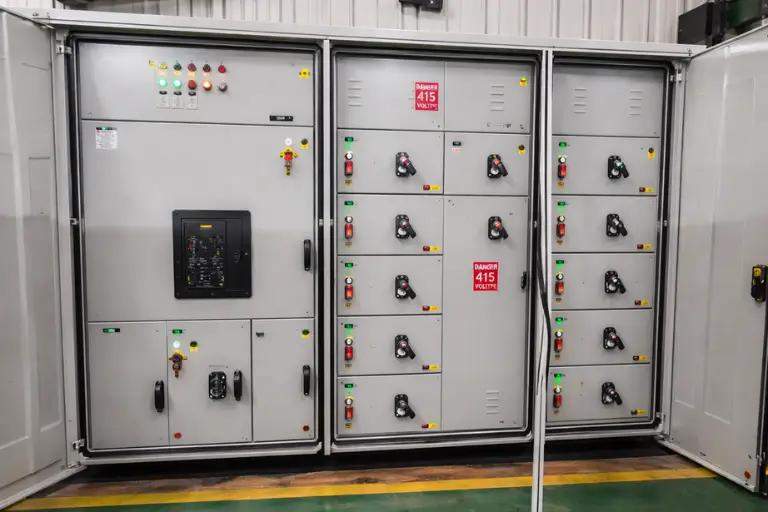

800V Solar ACDBs and inverter-duty LT panels for renewable energy projects.

Electricare manufactures solar ACDBs, inverter feeder panels, LT evacuation panels and auxiliary feeder configurations for EPCs and renewable-energy project teams.

Typical scope

Panel types and configurations.

The final configuration depends on the approved SLD, load schedule, breaker selection, fault level and site requirement.

Inverter feeder ACDBs

MCCB-based inverter incomers with metering, protection, indication and project-specific outgoing configuration.

800V LT execution

ACDB and LT panel design for high-voltage solar AC side requirements where component selection permits.

Auxiliary feeders

Transformer auxiliary feeder provisions, outgoing MCCB feeders and site-specific distribution requirements.

Repeat EPC supply

Repeat configurations for EPC teams needing standardised drawings, production tracking and dispatch readiness.

Panel ID traceability

Every panel can be tracked through fabrication, QC, dispatch documentation and later service reference.

Dispatch documentation

QC photos, internal test records, BOQ records and customer-ready dispatch documents.

Technical specifications

Standard 800V Solar ACDB specifications.

SpecificationDescription

Typical inputsInverter count, inverter kW rating, AC voltage, fault level, outgoing feeder requirement and make preference.

Feeder logicInverter MCCB feeders, main outgoing ACB and optional auxiliary feeder as per project requirement.

ApplicationsSolar EPC projects, renewable energy evacuation, inverter pooling and utility-side AC distribution.

TestingRoutine checks and Quality Control documentation with IEC / IS IEC 61439 reference where applicable.
